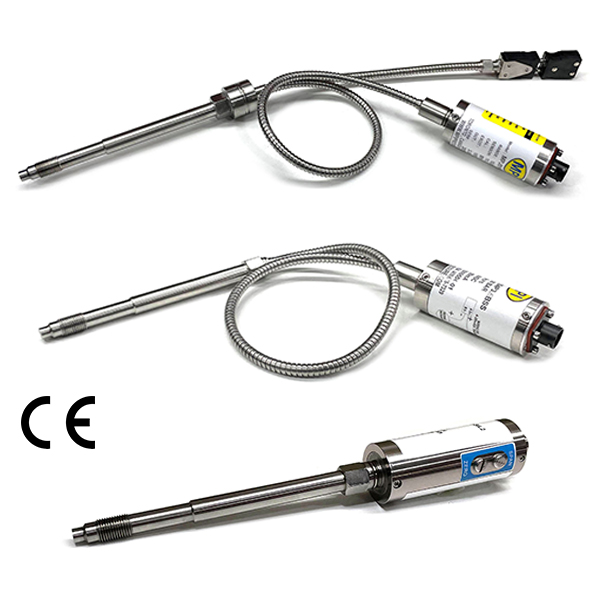

Melt Pressure Transmitters - 4-20mA w/ Output Relay Series
MPI offers a 4-20mA Melt Pressure Transmitter with a built-in relay output switch as a safety protocol.
The relay contacts will open under the following conditions:
The Output Relay feature can be added to any 4-20mA transmitter - including Mercury Filled Transmitters, NaK Mercury Free Transmitters, and Oil Filled Transmitters.
MPI Output Relay Transmitters also feature the SIL2 remote + local zero. They can be zeroed in two ways; remotely via PLC by shorting the RZERO+ (F-Orange) and the RZERO- (D-Green), or manually via the zero potentiometer.
MPI Output Relay Transmitters are SIL2(Safety Integrity Level 2) compatible
An internal Rcal transistor mounted to the strain gauge enables easy calibration of 80% of full scale.
Request a quote on the melt pressure transmitter you need. Contact MPI or give us a call at (800) 817-3486 for more information.
Full engineering support is available via email or by clicking on the Sales/Support LiveChat button below.
MT - Melt Pressure Transmitters w/ Output Relay User Manual (Download Brochure)
MK - Melt Pressure Transmitters - Mercury Free NaK Fill with SIL2 option (Download Brochure)
MPI/Dynisco Cross Compatibility List
MPI/Gefran Cross Compatibility List
The relay contacts will open under the following conditions:
- An open bridge is detected
- Loss of power to the sensors
- Pressure exceeds the relay threshold selected by the customer when order (from 10%-100% of the pressure range)
The Output Relay feature can be added to any 4-20mA transmitter - including Mercury Filled Transmitters, NaK Mercury Free Transmitters, and Oil Filled Transmitters.
MPI Output Relay Transmitters also feature the SIL2 remote + local zero. They can be zeroed in two ways; remotely via PLC by shorting the RZERO+ (F-Orange) and the RZERO- (D-Green), or manually via the zero potentiometer.
MPI Output Relay Transmitters are SIL2(Safety Integrity Level 2) compatible
An internal Rcal transistor mounted to the strain gauge enables easy calibration of 80% of full scale.
Request a quote on the melt pressure transmitter you need. Contact MPI or give us a call at (800) 817-3486 for more information.
Full engineering support is available via email or by clicking on the Sales/Support LiveChat button below.
MT - Melt Pressure Transmitters w/ Output Relay User Manual (Download Brochure)
MK - Melt Pressure Transmitters - Mercury Free NaK Fill with SIL2 option (Download Brochure)
MPI/Dynisco Cross Compatibility List
MPI/Gefran Cross Compatibility List
